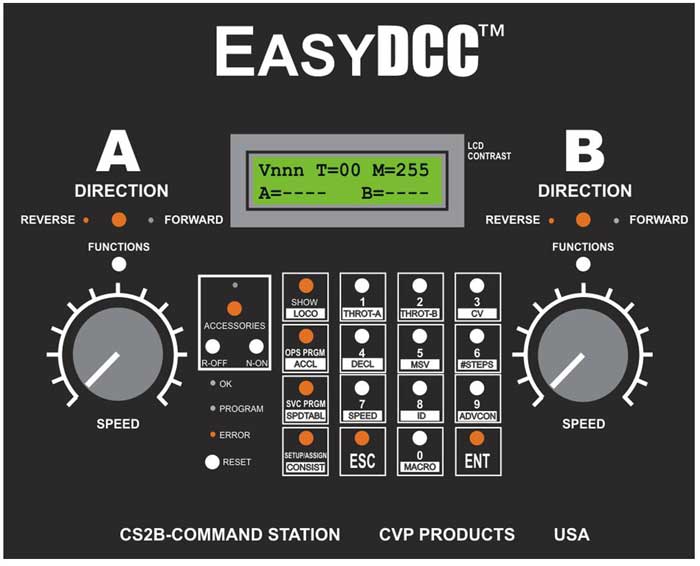

EASYDCC Master Command Station - CS2B
|
 |
The Master Command Station is the heart and brain of your system.
Thanks to the powerful, modular architecture only one is needed per layout.
Upgrades and enhancements are simple - just plug in a new chip.
Many users have switched from other DCC systems and upgraded to the EASYDCC Command Station and throttle system to enjoy the advantages of the superior customer service, superior design, ease of upgrading, easier operation and better throttles.
Please give us a call if you are considering switching.
We'll help you sort through what to keep and what to change.
Every Starter System includes the Master Command Station.
|
Simple Setup And Operation
Big, bright LCD display
Color coded, large, tactile keys
Clearly labeled key legends
Simple, logical command sequences
Two built in throttles
Memory backup battery for all settings
Separate, isolated programming track output
Program without disrupting normal operation
Built-in Helpful Diagnostics
Shows running tally on system capacity
Display always shows software version
Monitor locomotive's speed and direction
Displays decoder's function status
Monitor any throttle at any time
Allows use of 14, 28 or 128 speed steps
Unique System Optimization Features
User programmable decoder refresh rate
Easily disable unused features
Automatic system performance tuning
Manual or automatic memory management
Optimized for wireless throttle performance
Simple Accessory Decoder Control
Throw multiple turnouts with route controls
Up to 32 turnouts per route
Use any brand of accessory decoders
2048 unique accessory decoder addresses
Activate routes from any throttle or the Command Station
Perfectly matched to the AD4 accessory decoder series
|
Simple Multi-Unit Consist Creation
Supports standard and advanced consisting
Locomotives in a consist may face in either direction
Edit consists to add or delete locos
Consists are stored in non-volatile memory
Shows all consist's loco addresses
Shows the locomotive's current consist assignment
Mix advanced and basic decoders in a consist
Lead locomotive automatically receives function commands
Supports Mainline Programming
Reprogram decoders while operating
Change any CV value, including address
Watch the change take effect while loco is running
Supports mainline programming of the accessory decoders
Outstanding System Features
Compatible with ALL NMRA-DCC decoders
Up to 9999 unique decoder addresses
Supports 31 plug-in and wireless throttles simultaneously
Free, built-in RS232 serial computer port
Mounts either horizontally or vertically
Built For Years Of Trouble-Free Operation
Rugged steel plate with baked on finish and silkscreen
Socket devices for easy servicing, and future capability upgrades
Designed, and built in the USA
Lithium coin-cell backup battery for ultra long memory retention
|
Part# Description
CS2B........EasyDCC CS2B Command Station, Transformer and Telco Cable
CS2B-nt.....EasyDCC CS2B Command Station without transformer
|
|
Download the EasyDCC System Manual to learn more of the many features and capabilities of the Command Station.
|
|
|
|
|
Prices do not include shipping or handling.
All prices subject to change without notice.
|
