CVP'S Battery Packs* and Smart Chargers

CVP's Batteries and Chargers are not required, and other packs and chargers can be substituted without any harm. However, our packs are designed for the specific and demanding requirements of indoor and outdoor railroads. Our battery packs offer the best performance without any compromise among many factors such as safety, power, size, weight, voltage, motor noise and lifetime.

Lithium-Ion Chemistry - Recognized as the "standard", Lithium-Ion rechargeable batteries have long lives, lots of power and relatively small physical size.

Fully Protected - All of our battery packs include an internal circuit board that prevents the battery pack from short circuits and overloads, as well as automatic cutoff when the battery is fully discharged. The internal board also protects during charging to prevent over charging. The built in protection is what ensures our batteries provide many years of trouble-free use.

Pre-Installed Battery Connector come with pre-attached connectors. For example, the BAT2 and BAT3 have a pre-mounted 2.5mm JST connector. No soldering or splicing necessary for Drop-In™ and Plug-In™ decoders. Additional connectors and extensions are available separately.

Now Available From Authorized AIRWIRE Dealers Or Direct From CVP.

BAT4*
3.7V 2000mAh Protected

CVP AirWire900 BAT4 Battery
Dimension L x W x H inches
Weight
Voltage
Max Charge Voltage
Max Charge Current
Capacity
Automatic Cutoff
Max Discharge Current
Connector
Matching Charger
2.4 x 1.5 x 0.3
<16g
3.7V
4.2V
300mA
2000mAh
2.75V
2A
JST 2.0mm
CVP Charger2
BAT3*
14.8V 3400mAh Protected

CVP AirWire900 BAT3 Battery
Dimension L x W x H inches
Weight
Voltage
Max Charge Voltage
Max Charge Current
Capacity
Automatic Cutoff
Max Discharge Current
Connector
Matching Charger
1.5 x 1.5 x 2.8
8 oz
14.8V
16.8V
3mA
3400mAh
11V
6A
JST 2.5mm
CVP Charger2

CHARGER1
14.8V Fixed 1.5 Amp

CVP AirWire900 CHARGER1 Battery Charger
Pack Voltage
Selection
Connector
AC Input


14.8V only
Fixed
Alligator Clips
Universal 90-240VAC


BAT2*
14.8V 6800mAh Protected

CVP AirWire900 BAT2 Battery
Dimension L x W x H inches
Weight
Voltage
Max Charge Voltage
Max Charge Current
Capacity
Automatic Cutoff
Max Discharge Current
Connector
Matching Charger
2.8 x 1.5 x 2.8
14 oz
14.8V
16.8V
3A
6800mAh
11V
12A
JST 2.5mm
CVP Charger2

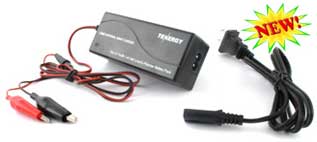

CHARGER2
Auto Select 1 Amp

CVP AirWire900 CHARGER2 Battery Charger
Pack Voltage
Selection
Connector
AC Input
3.7V, 7.4V, 11.1V, 14.8V
Automatic Detection
Alligator Clips
Universal 90-240VAC

CVP's AirWire900 - Battery Powered Wireless Control
CVP's AirWire900 - Battery Powered Wireless Control
AirWire Components Price List
Prices do not include shipping or handling. All prices subject to change without notice. * CVP Batteries are not available for international shipping


A Tip From The Pro

Higher amp-hour capacity batteries may be used although as capacity goes up, so does the price, the size, the weight and the need for a specialized charger. If these factors are less important than battery life, by all means use the higher capacity batteries. Be sure to obtain a matching charger and for the best radio range, stay with the 14.8V rating.
