  Lenz DCC System

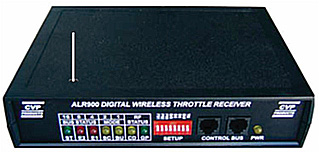

ALR900 Wireless Receiver
Lenz Wireless DCC


ALR900 Wireless Throttle Receiver

  • No Changes To Your Existing Lenz DCC System

  • Simple Connection To Xpressnet

  • Simple Setup

  • Supports Up To 16 Wireless Throttles (Group 1 + Group 2)

  • Selectable Operation Mode

  • No Programming Necessary
Lenz DCC - ALR900 Wireless Throttle Receiver
With the addition of an ALR900 Wireless Receiver, CVP Products' popular wireless throttles can be used with any Lenz DCC system. The ALR900 plugs right into the ExpressNET throttle bus with the included cable. The ALR900 receiver works with all of CVP's wireless throttles instantly giving you the freedom of cordless throttle control. There is nothing special to do or learn.

Use The Wireless Receiver Along With Tethered Throttles - Or Not!

CVP's wireless throttles can be used alone or right along with your existing Lenz tethered throttles without any changes. For new installations, you may choose to use only wireless throttles and enjoy the freedom of no throttle bus wiring.

Supports Up To 16 Wireless Throttles Using 2 Receivers (G1 and G2)

The ALR900 receiver is available as either a Group 1 receiver or a Group 2 receiver. Each group supports up to 8 wireless throttles. Legacy CVP wireless throttles must use a Group 1 receiver with frequencies of 0 to 7. Group 2 supports frequencies 8 to 15. The current generation of wireless throttles can be set to any of the 16 frequencies.

Fast Response Time

Each throttle uses its own frequency providing fast response to function key presses. Since each throttle has a dedicated frequency, response time is optimized and there is never any interference from other throttles. This mode is perfect for a modest size layout where no more than 8 throttles will be used simultaneously.

Easy Setup - No Programming Needed

All setup switches are readily available on the front panel. You can select from the different options or change them at any time without opening the chassis.

Easy Connection To Lenz System

The ALR900 plugs right into the Lenz system's control bus without any changes. The required modular data cable is included. This handy feature is helpful while determining the ALR900's location having the best overall reception - perfect for clubs and modular layouts.

ALR900 Wireless Receiver Pricing

ALR900 Receiver User Manual
Download the ALR900 Wireless Receiver Manual for details on its operation and setup.
